Architectural Drawings – 7-Storey 10-Unit Apartment Block | DA74501A

Architectural Drawings for building ID: DA74501A

⏱️ Backorder Notice: Files are in production. Upon purchase, your documents will be delivered within 7 business days via email.

Skip months of design work. Get professional, construction-ready architectural drawings for a 7-storey, 10-unit apartment block — fully detailed and ready to submit for planning approval.

What's included:

• Site plan and floor plans (basement, ground floor, floors 1–5, rooftop)
• Elevations (front, rear, side)
• Sections and roof plan
• Door and window schedules
• Basement parking (12–24 spaces), guardhouse, and rooftop communal amenities layout
• Drawn to standard by certified architects at DPRO.design

Each apartment includes: 4 en-suite bedrooms, master suite with walk-in closet, separate servant's quarters, living room, dining room, kitchen with breakfast nook, front balcony (3m × 4m), and rear utility balcony — on a 30m × 30m (900 sqm) urban plot.

Ideal for property developers, landlords, and contractors in Uganda and East Africa ready to build or seeking planning approval and financing.

Download files include:

• DPRO.design Architectural Drawings – DA74501A – PDF (print-ready, A1/A0)
• DPRO.design Architectural Drawings – DA74501A – DWG (editable)

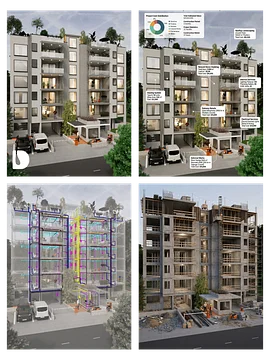

Best paired with the Structural, MEP, and BOQ drawings for DA74501A for a complete construction package.

Need modifications or a 3D render? Contact us on WhatsApp/Telegram +256754463676 or at hello@dpro.design.
