Architectural Design DA43202A
Architectural Design for building ID: DA43202A

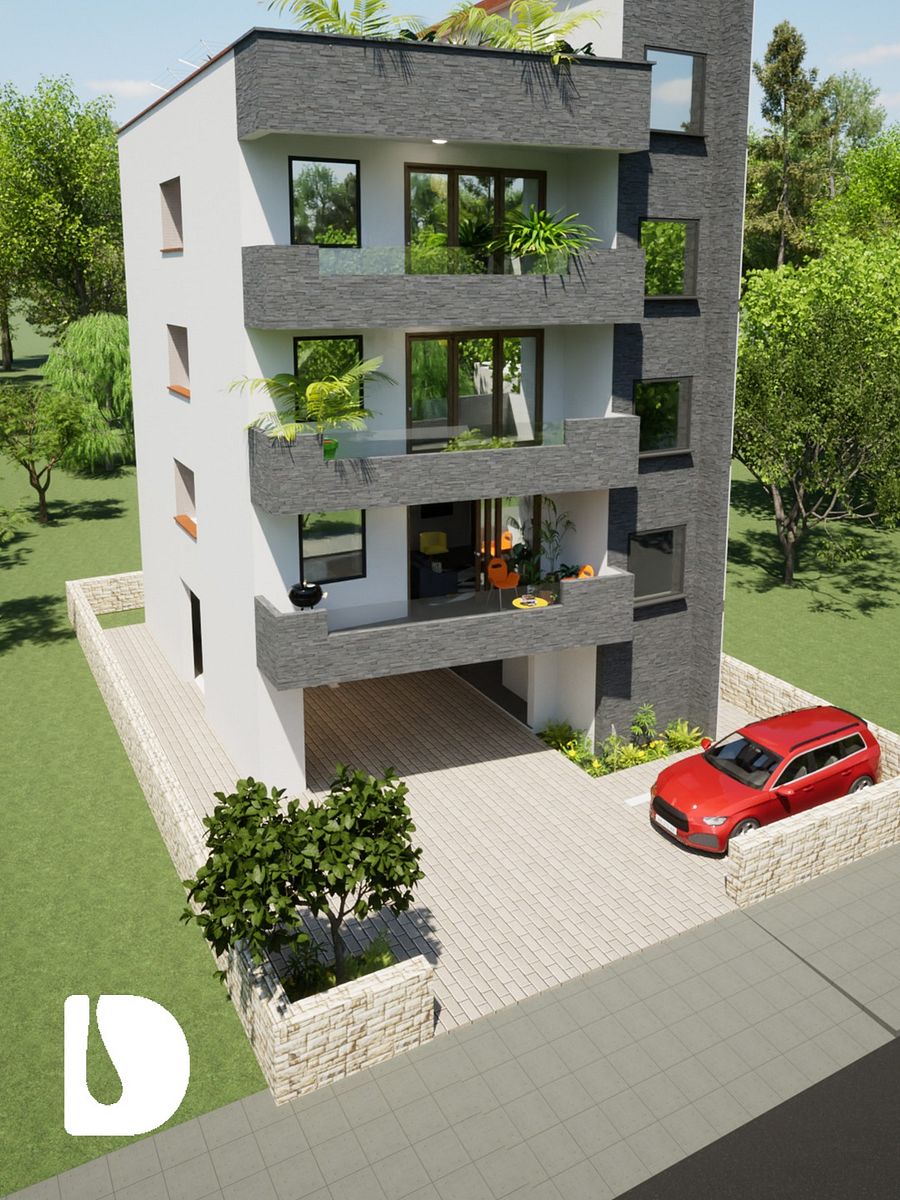

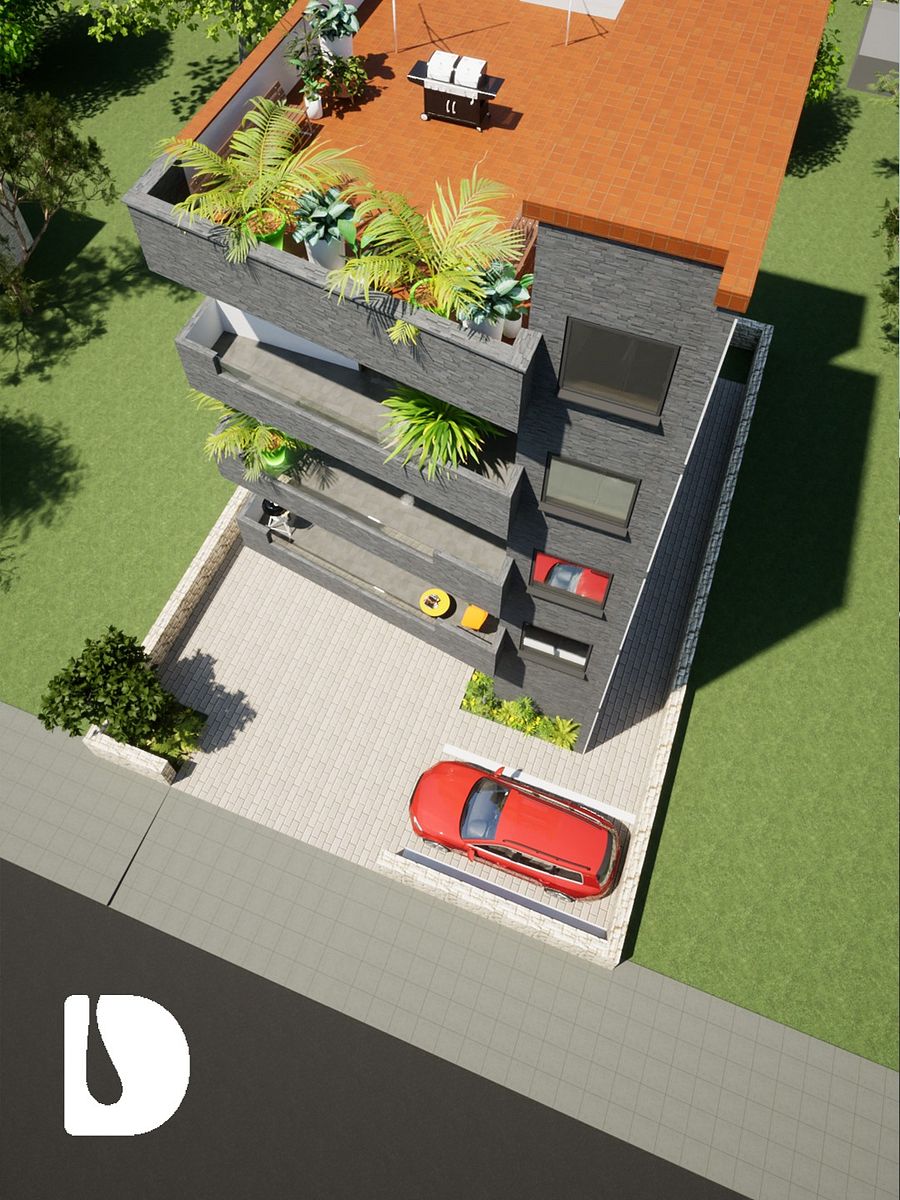

On a small 40X60 lot/ plot, construct 3 Apartments each with 2 bedroom and 2 bathrooms accessible through a corridor and 1 ensuite. There is one 2 BHK apartment per floor. 3 vehicle parking spaces are available with space for outdoor weather protected garbage collection.
View a 360 YouTube video of the house here
Floor Plan available in metric system and imperial system (upon request):
- Total Floor Area = 555sqm/ 5974sqft
- Ground Floor Area = 111sqm/1195sqft
- Apartment Area = 80sqm/861sqft
Ground Floor:
- 3 Parking Spaces
- Outdoor weather protected garbage collection
- Stairs and Lift/ Elevator to the first floor
First Floor:
- There is 1 Double Bedroom Apartment with 2 bathrooms (one is ensuite/ self contained)
- Private front balcony accessed through the living room
- Private side balcony accessed through the kitchen with provisions for outdoor cooking and laundry
- Stairs and Lift/ Elevator to the ground and second floor
Second Floor:
- There is 1 Double Bedroom Apartment with 2 bathrooms (one is ensuite/ self contained)
- Private front balcony accessed through the living room
- Private side balcony accessed through the kitchen with provisions for outdoor cooking and laundry
- Stairs and Lift/ Elevator to the first and third floor
Third Floor:
- There is 1 Double Bedroom Apartment with 2 bathrooms (one is ensuite/ self contained)
- Private front balcony accessed through the living room
- Private side balcony accessed through the kitchen with provisions for outdoor cooking and laundry
- Stairs and Lift/ Elevator to the second and root top (fourth floor)

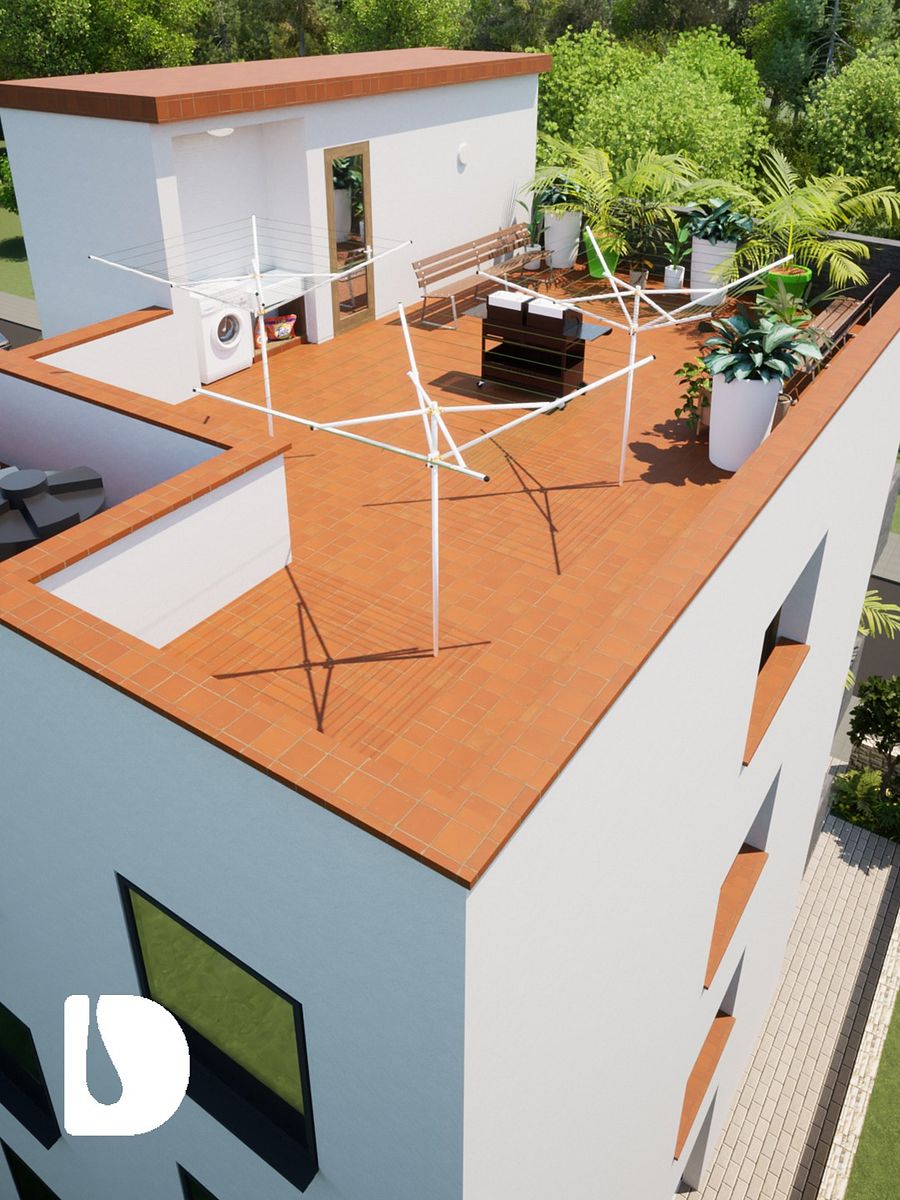

Roof top:
- Rooftop can be adapted as a covered roof
- Access to water tanks
- Available for laundry use and as a patio with a sink
- Stairs and Lift/ Elevator to the third floor
Get in touch with us at hello@dpro.design to purchase an accurate Bills Of Quantities and Material Schedule.
