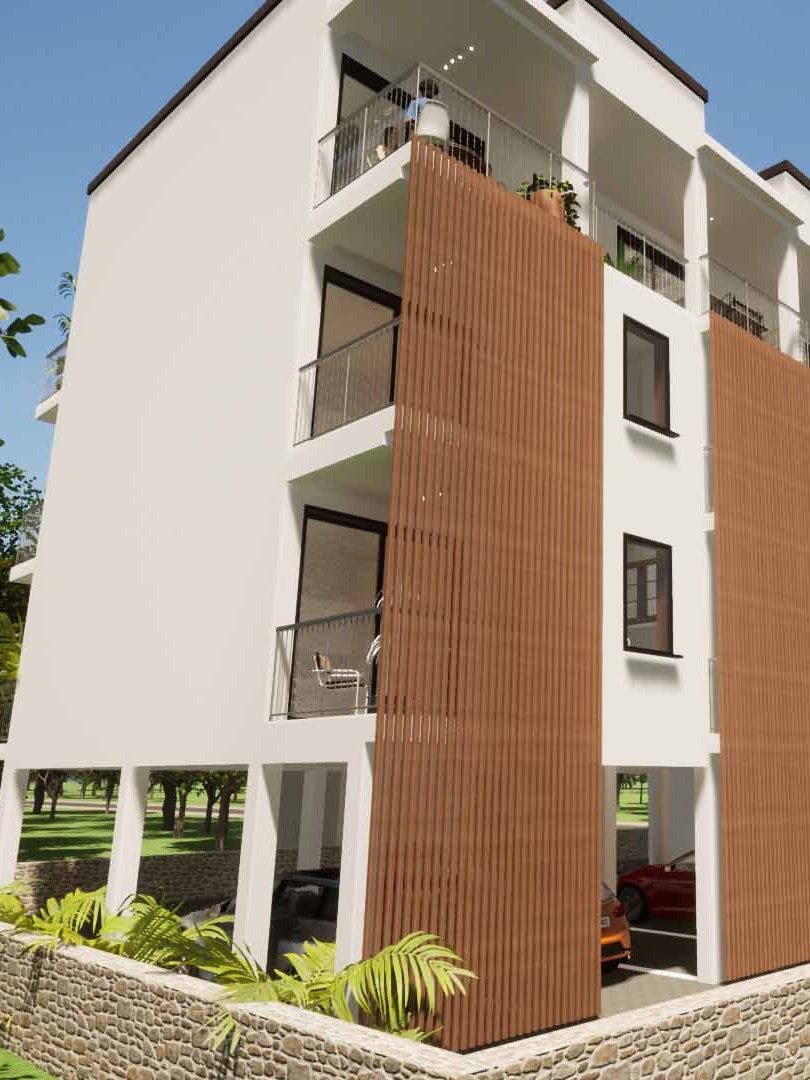

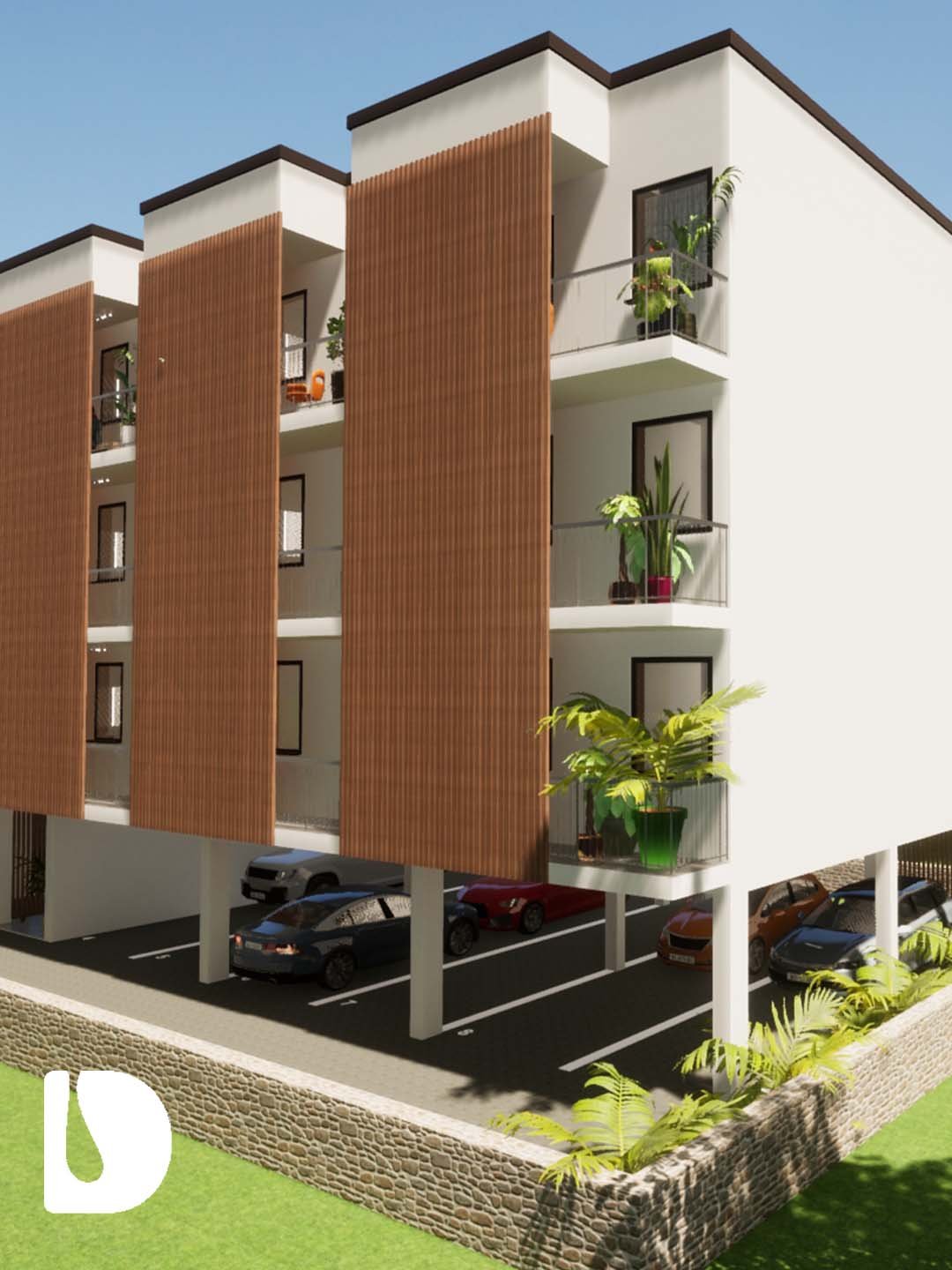

Apartment Design DA43301A-DA4101201A
For a 50 x 100 plot of land. Building footprint is 36ft x 85ft
Ground Floor:

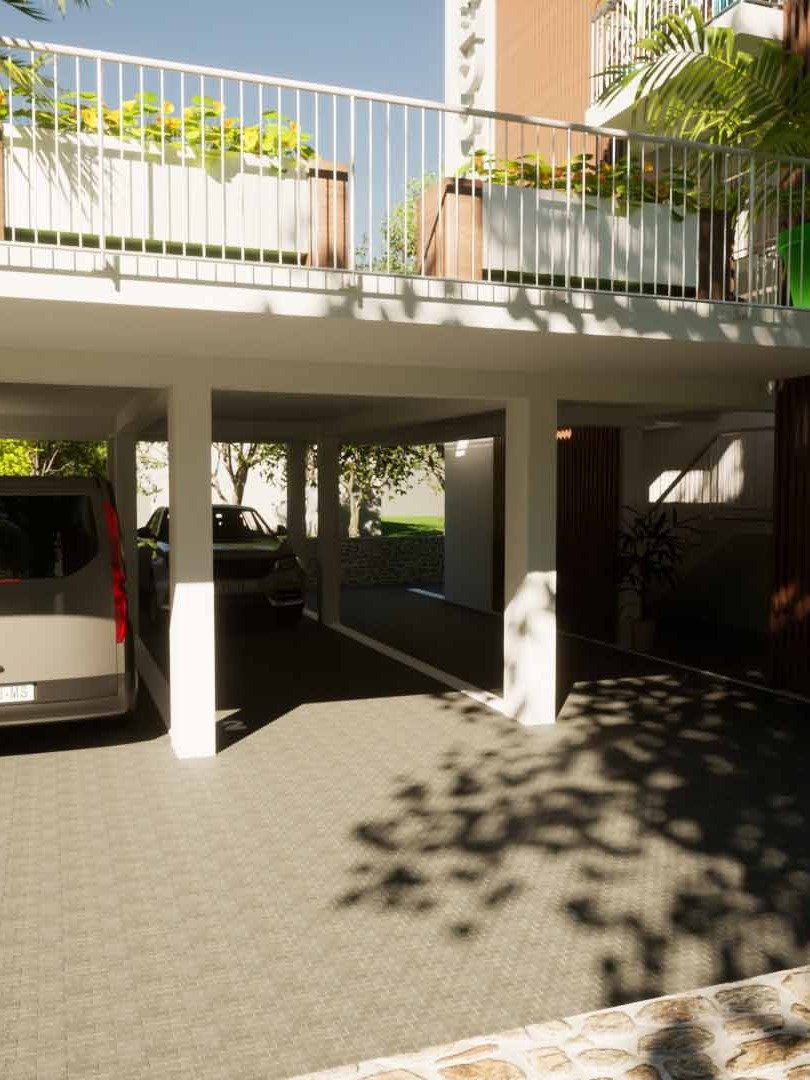

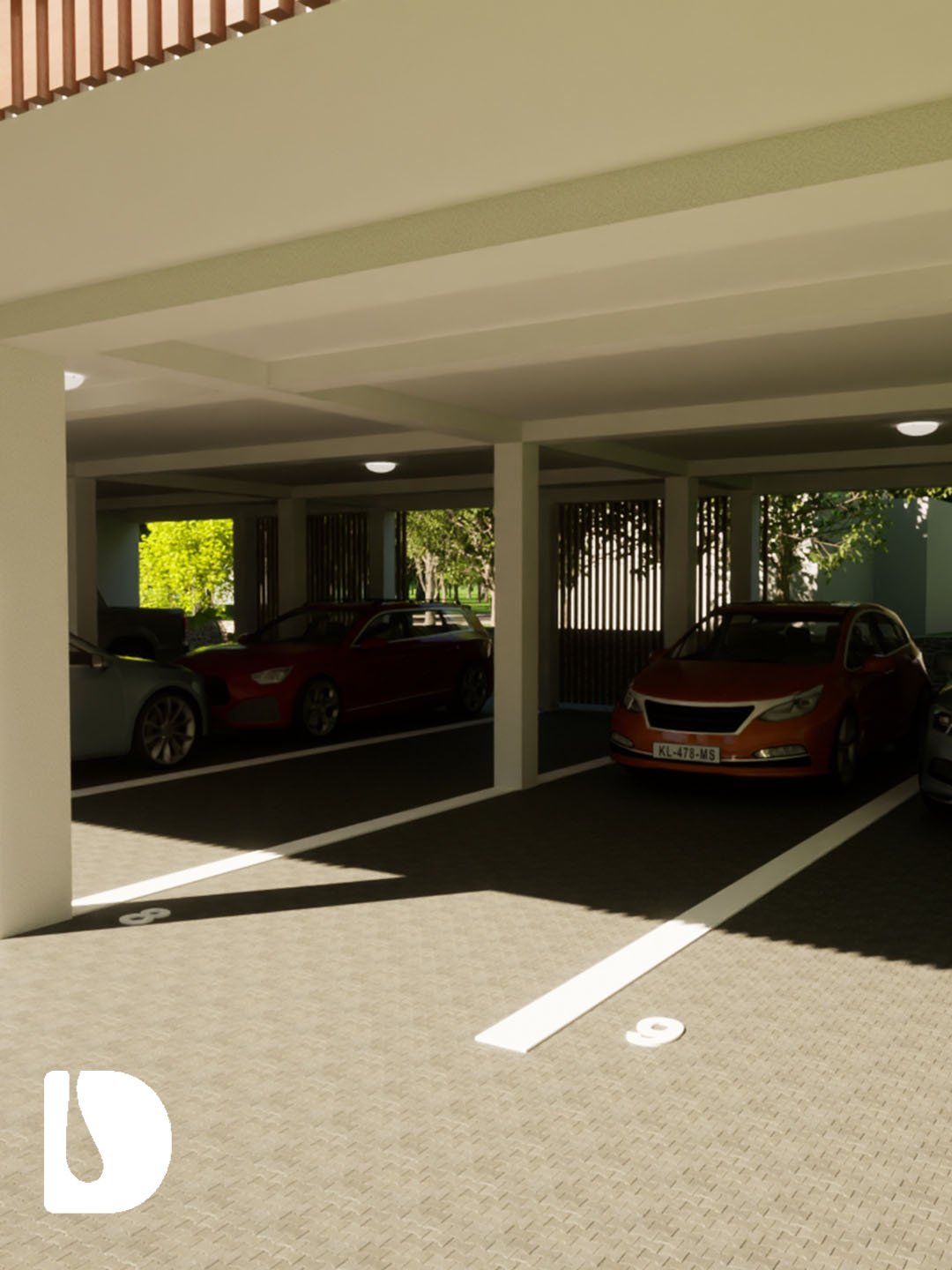

- Up to 18 Vehicle Parking
- Stairs and elevator to the first floor
First Floor:
- 03 Apartments each with the layout description as below
- Stair and lift/ elevator access
- All access is through the rear of the building

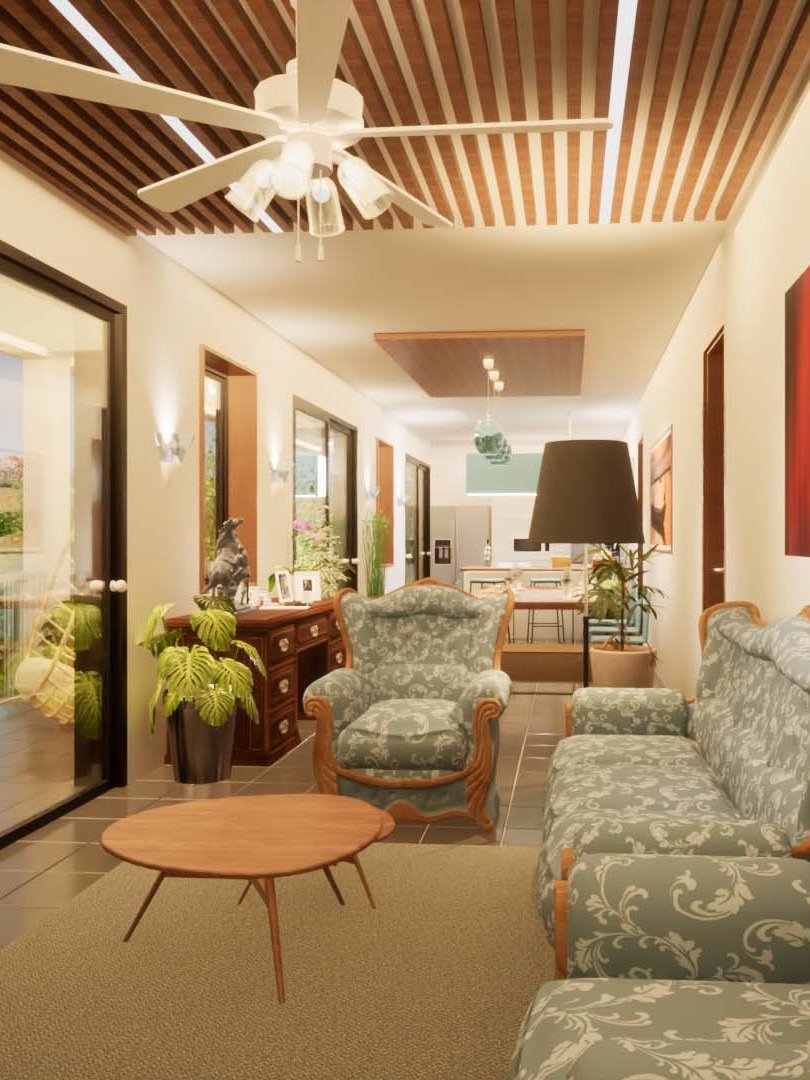

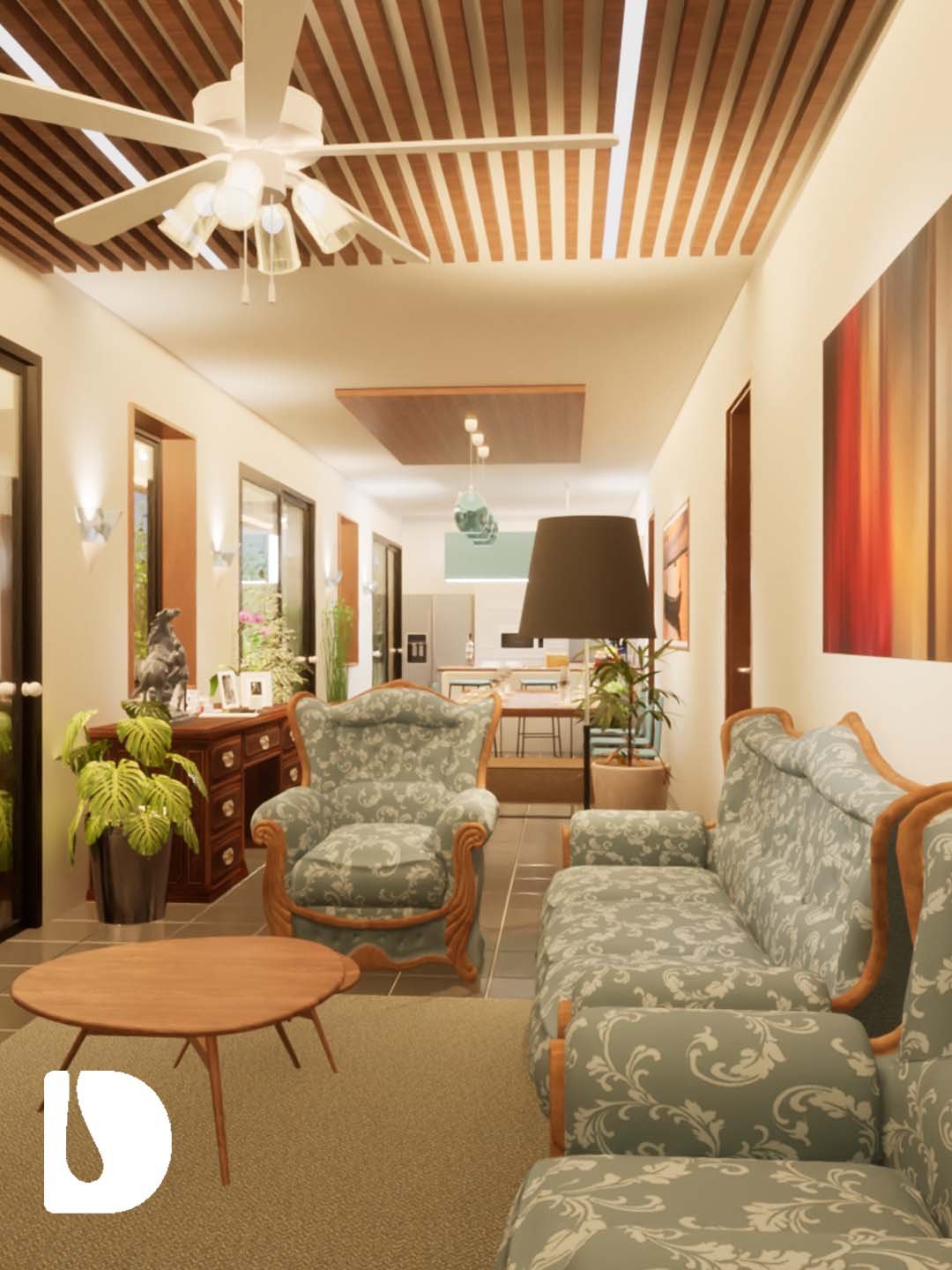

- Living room in open plan layout together with a kitchen
- Large front facing private balcony accessed through the living room
- Kitchen
- Washroom with corridor access

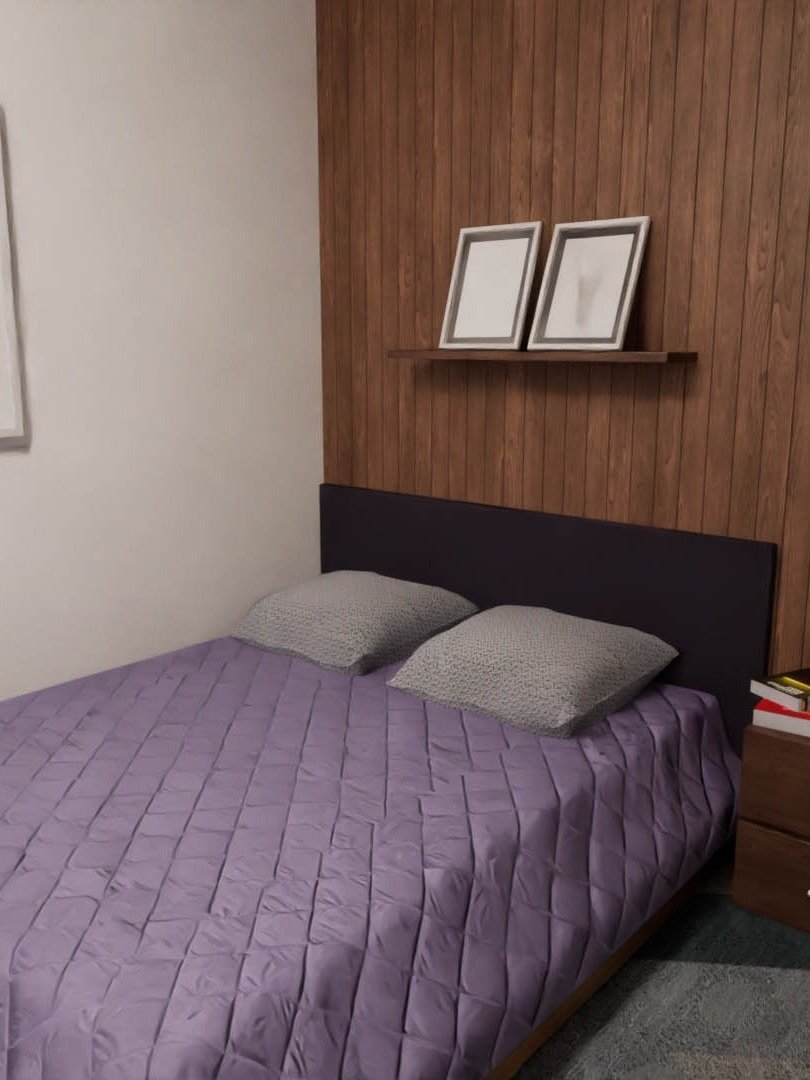

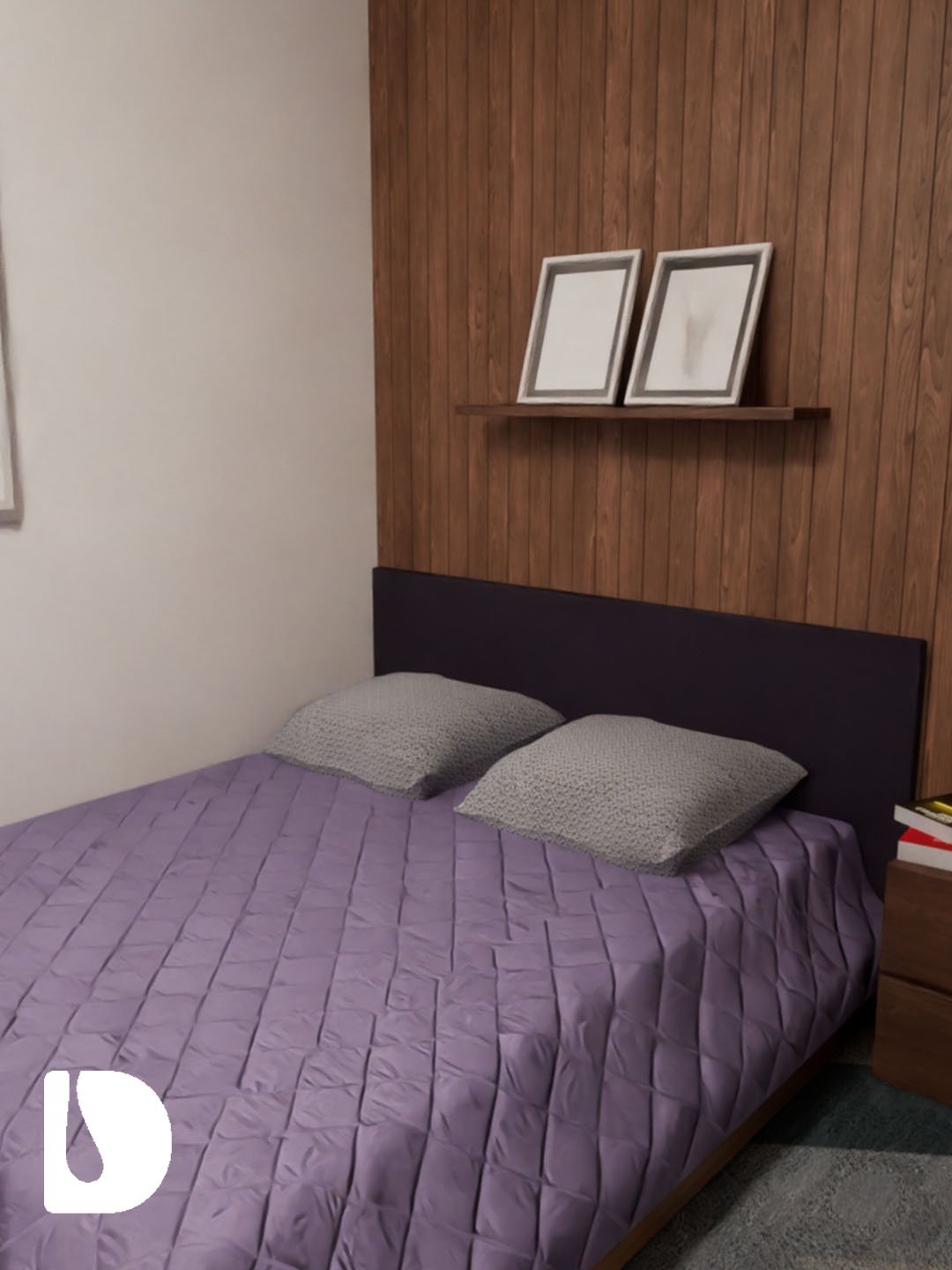

- Single bedroom with dressing, makeup or work desk area
- Stairs to the ground floor and second floor
Second Floor:
- 02 Apartments each with the layout description as below
- Stair and lift/ elevator access
- All access is through the rear of the building
- Living room in open plan layout together with a kitchen
- Large front facing private balcony accessed through the living room
- Kitchen
- Washroom with corridor access
- Kids bedroom with dressing, makeup or work desk area
- Master bedroom with dressing, makeup or work desk area
- Private master bedroom bathroom
- Stairs to the first floor and third floor
Third Floor:
- 01 Apartment (Penthouse) with the layout description as below
- Stair and lift/ elevator access
- All access is through the rear of the building
- Living room in open plan layout together with a dining and kitchen
- Full length front facing private balcony accessed through the living room, dining room and kitchen. The balcony has room for an outdoor breakfast table for four, a cooking area, dining seating for 5 and an outdoor lounge
- Dining
- Kitchen
- Washroom with corridor access
- 02 Kids bedrooms with dressing, makeup or work desk area
- Shared kids washroom accessed through their private corridor
- Private kids balcony
- Master bedroom with dressing, makeup or work desk area
- Private master bedroom bathroom
- Private master bedroom balcony
- Stairs to the second floor and rooftop (optional)
Rooftop:
- Optional rooftop access
- Rooftop can be adapted as a flat roof with activity access (laundry, patio or solar system)
- Access to water tanks
- Stairs to the third floor (optional)
Made with ARCHICAD and Twinmotion
